Ceiling Mounted Air Conditioners

Ceiling mounted cassette units – Ceiling cassette air conditioning systems are an ideal option to air condition rooms where there is no available walls to mount a split system or where there is limited ceiling space for a ducted system. Its whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses.

  1. Mitsubishi

    Ceiling cassette air conditioning systems are an ideal option to air condition rooms where there is no available walls to mount a split system or where there is limited ceiling space for a ducted system. Its whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses.

    Ceiling Cassette Systems:

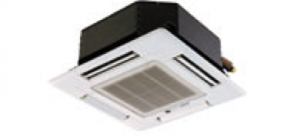

    UntitledSLZ-KA-VA2 Series – 2.5 kW – 4.6 kW

  2. Fujitsu

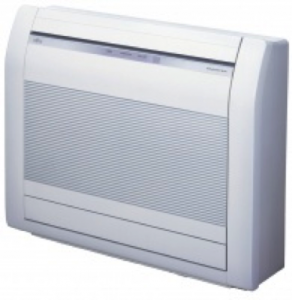

    ceiling-floor-air-con

    Slim and lightweight, these models have been designed for floor or ceiling installation. Ideal for both residential or commercial applications.

    Click here to view the Fujitsu product range

    Universal comfort

    With slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Extremely quiet and energy efficient, they are ideal for residential or comercial situations.

    What’s an Inverter?

    Through new, advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They can handle greater extremes in temperature, are smoother and more stable in operation, and reach the desired temperature more quickly than conventional air conditioners.

    what is an inverter

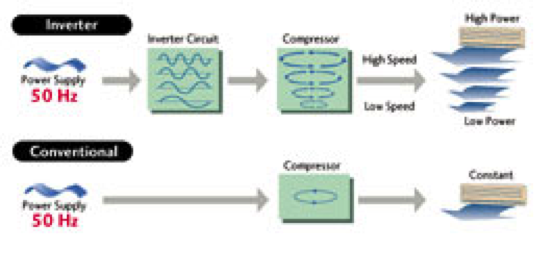

    Inverter control

    The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much cheaper to run.

    inverter-controlinverter-controlling

    Ceiling Mounted Cassette

    ceiling mounted cassette air conditioner

    Extremely discreet, with only the grill showing in the ceiling. Latest fan technology distributes the conditioned air evenly throughout the room.

    Click here to view the Fujitsu product range

    Efficient, simple, discreet

    Incorporating the latest fan technology, these units fit neatly into the ceiling and distribute conditioned air through 2, 3 or 4 sides of the unit. In addition, flaps allow air to be directed in either a pre-set or sweep pattern.

    Weekly Timer

    The sophisticated weekly timer and remote controller not only makes it easy to adjust air conditioning units, but can also help realise considerable savings. It allows the air conditioning system to be programmed in advance to operate only as and when required.

    The function of weekly timer:

    • Possible to set different on-off time by day.
    • Possible to set on-off time twice a day.
    • Possible to set time by 5 min.
    • The timer operation of a reserved day can temporarily be cancelled by pushing the “DAY OFF” button.
    • Time setting can be left until the next day.
    • The system can also be manually overridden.

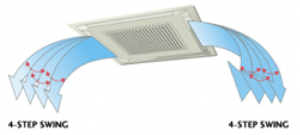

    Swing Louvres

    swing-air-conditioner

    The airflow direction, up or down is set automatically to match the operating mode, down for heating, up for cooling.

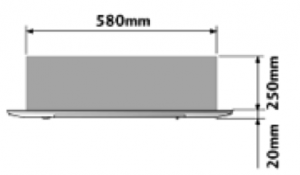

    Elegant design

    elegant-air-conditoner-design

    The thin part can be embedded in the ceiling. This ultra thin air conditioner can be installed in any narrow ceiling. (Compact Cassette only)

    Slender Fit (2-way setting)

    This new mechanism enables the cassette body to move 35mm downward and allows installation into the space of 250mm. No special work or options is needed.

    4-Way air flow system

    4-way-air-conditioner-air-flow-system

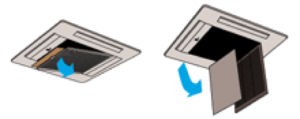

    Simple Maintenence

    simple-air-conditioner-maintenance

    Detachable and washable air intake grille

  3. Toshiba

    Ceiling Cassette System

    toshiba-ceiling-cassette-air-conditioner

    Light Commercial Catalogue

    Compact and Stylish – Ceiling Cassette Type

    The ceiling cassettes are suitable for use in wide range of applications line shops, small offices and so on. Aesthetically pleasing and stylish indoors fits with interior where design is as important as functionality. The Cassette type suits all standard ceilings and is easy to install and maintain.

    Key features

    Perfect for grid system ceiling

    • This compact unit (575×575) fits perfectly into ceilings and matches standard architectural modules, without the need to cut ceiling tiles.
    • The compact & stylish panel design is ideal for fashionable restaurants, shops and offices.
    • The flaps fold tightly against the ceiling when operation stops so that the ceiling is affected only slightly even if air-conditioning is installed.

    Designed for simple & easy installation and maintenance

    • The slim design is only 268 mm in height even when an electrical box is located inside the unit.
    • Easy access to electrical box is achieved by simply removing the suction grill. The ceiling type offers easy installation and maintenance, since the electrical box is located inside the unit.
    • Easy installation can also be achieved using the panel adjust pocket. Use the “gadjust pocket” function for fine adjustments after installation.
    • The drain up height is 850 mm. Correspondence is possible even if installation conditions are severe.
    • Available for ceilings up to 3.5 m.

    The drain-checking hole makes it possible to check the drain pan through the side case.

  4. Temperzone/Hitachi

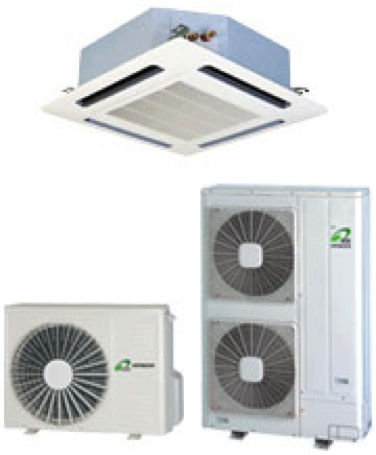

    Inverter Cassette Air Conditioning Systems

    temerzone-hitachi-air-conditioners

    Download Brochure

    Download DC Inverter Cassette spec sheet

    Key Features

    • Reverse cycle
    • 5 sizes from 7kW through 18kW
    • Single room or the whole house from 45m2 through 150m2
    • Outdoor Unit can be 50m from the indoor unit
    • All DC Inverter with PAM
    • High efficiency
    • Improved comfort inverter control
    • Very low outdoor noise level
    • Lower operating costs due to the high efficiency design.
    • Improved comfort through the use of a DC Inverter compressor and sophisticated controls.
    • Low operating noise levels both inside and outside to ensure you and your neighbors can live in peace and quiet.
    • Lower impact on the environment due to higher operating efficiencies and the use of a non-ozone depleting refrigerant.

    All Units are single phase thereby enabling lower installation costs.
