Console Split systems

A split system has two main parts, the indoor head unit and the outdoor compressor unit. In the back-to-back installation method, the indoor head unit is positioned inside on an external wall and directly beneath it on the outside is the outdoor compressor unit with the pipework and electrical interconnectors running neatly in PVC ducting between the two parts.

Console split systems – these are floor or ceiling mounted air conditioning unit for places with limited spaces such as excessive amounts of windows along one wall making wall mounting impossible.

  1. Mitsubishi

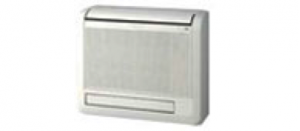

    Mitsubishi Electric console split system air conditioners are designed for installation at floor level, providing more even heating comfort.

    Console split system air conditioners from Mitsubishi Electric are available in two types, the standard MFZ-KA-VA series and the MFZ-FB VAH Hyper-Heating series. Unlike conventional air conditioning systems, the HYPER-HEATING Series do not loose heating capacity when it is cold outside. A Mitsubishi Electric hyper-heating Heat Pump will deliver the same amount of heat whether the outside temperature is 7°C or –15°C.

    mitsubishi-console-spilit-systems

    Console Split Systems:

    MFZ-KA-VA Reverse Cycle Inverter

    MFZ-FB VAH Hyper-Heating Inverter



  2. Fujitsu

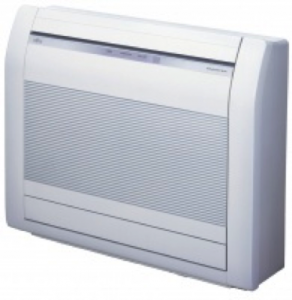

    Ceiling/Floor Console

    ceiling-floor-console

    Slim and lightweight, these models have been designed for floor or ceiling installation. Ideal for both residential or commercial applications.

    Universal comfort

    With slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Extremely quiet and energy efficient, they are ideal for residential or comercial situations.

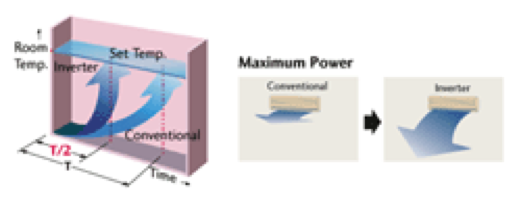

    What’s an Inverter?

    Through new, advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They can handle greater extremes in temperature, are smoother and more stable in operation, and reach the desired temperature more quickly than conventional air conditioners.

    what is an inverter

    Inverter Control

    The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much cheaper to run.

    inverter-control

    inverter-controlling

  3. Toshiba

    Toshiba Air Conditioners – UFHP, Console & Under-ceiling, Heat pump

    toshiba-air-conditioners

    toshiba-air-direction

    More Power & Greater Airflow

    • Hi-Power mode enables you to reach your desired setting far faster.
    • Five selectable fan speeds mean you can adjust the air speed to match your preference. Moreover, the width of the louver coverage is an impressive 120°.
    • In under-ceiling units, the ariflow can be directed horizontally away from occupants for non-intrusive and natural air distribution in both cooling and heating mode.

    console-air-conditioner-under-ceiling-installation



    Console & Under-Ceiling Installation

    This Toshiba UFHP air conditioner can be installed as either console or under ceiling. The UFHP series needs no modification for either application and is easy to install. Just remove the air-intake grille to link the piping and electrical connections.

    Comfort & Quiet

    Quietest air conditioner in its class, operating at just 36 dB. In Quiet mode the indoor will operate at the lowest noise level. It shifts to super-low fan speed, thereby reducing the sound of the indoor unit by 3 dB.



    After choosing the Comfort Sleep mode, the temperature will rise by 1°C after 1 hour, then another degree after 2 hours, which will be maintained untill morning. In heating mode the temperature will decrease by 1°C after 1 hour, then another degree after 2 hours.

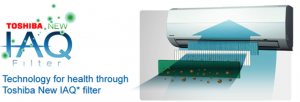

    toshiba-iaq-filter

    Air Purity without Compromise

    Toshiba console air conditioner features new IAQ air filter. Toshiba IAQ technology is able to seriously inhibit the activity of harmful becteria and viruses (including avian influenca). The experience gathered with all the previous filtration devices has led to this highly effective device that purify the air without reducing the air flow capacity of the unit. With this Toshiba air filtration system the air becomes purer, fresher and healthier ensuring optimum comfort for the whole family. Your house will feel like it has been spring cleaned every day!

    Self-Cleaning Function

    When you turn off your Toshiba air conditioner, an internal fan automatically activates to dry out the coil. This removes the moisture which causes mould to form. 20 Minutes of fan operation after shut down, dries the moist air and helps reduce mould formation.
